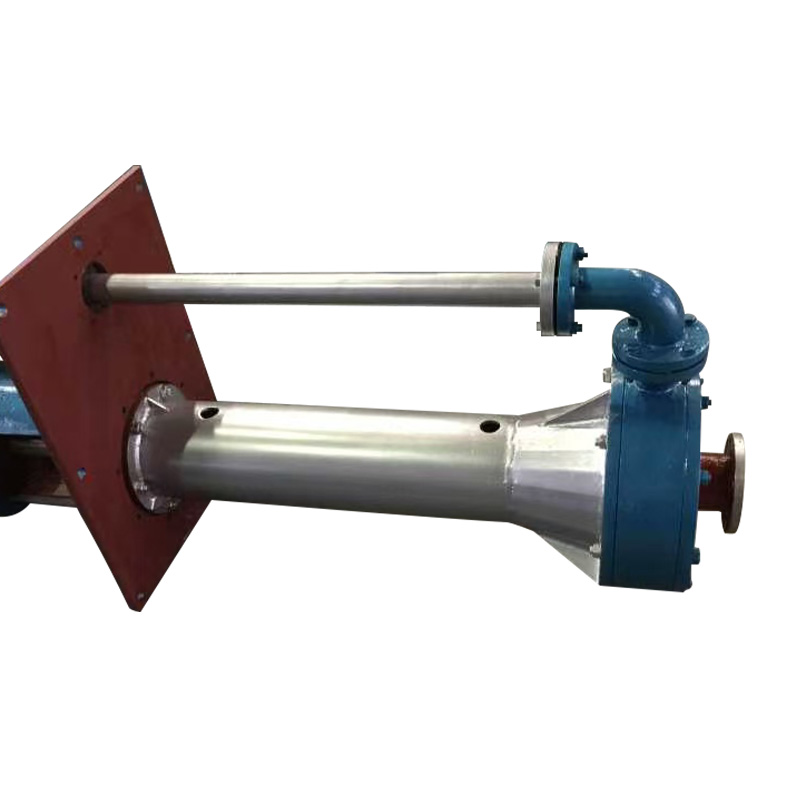

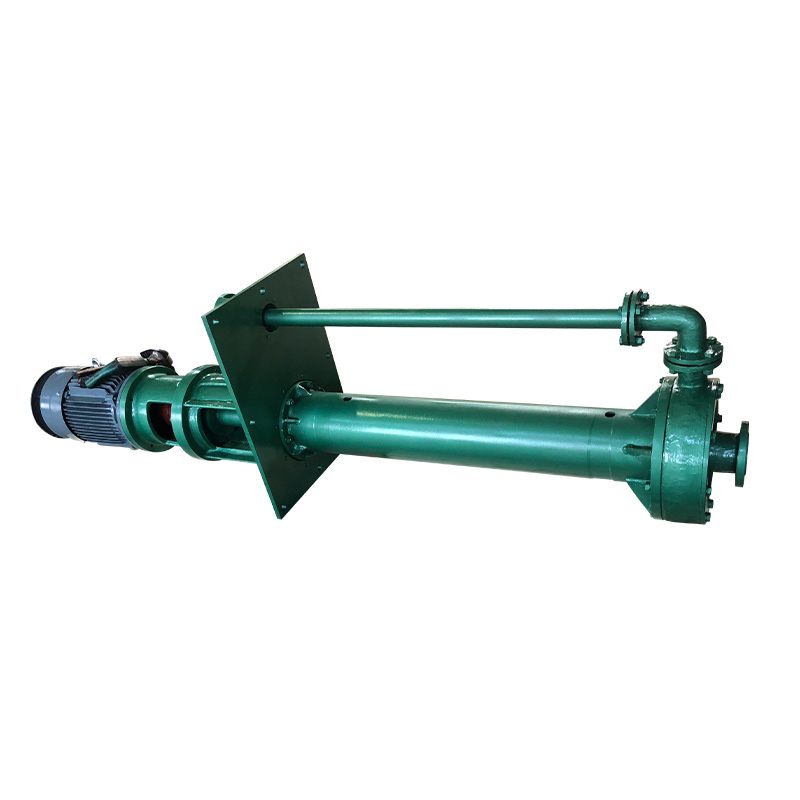

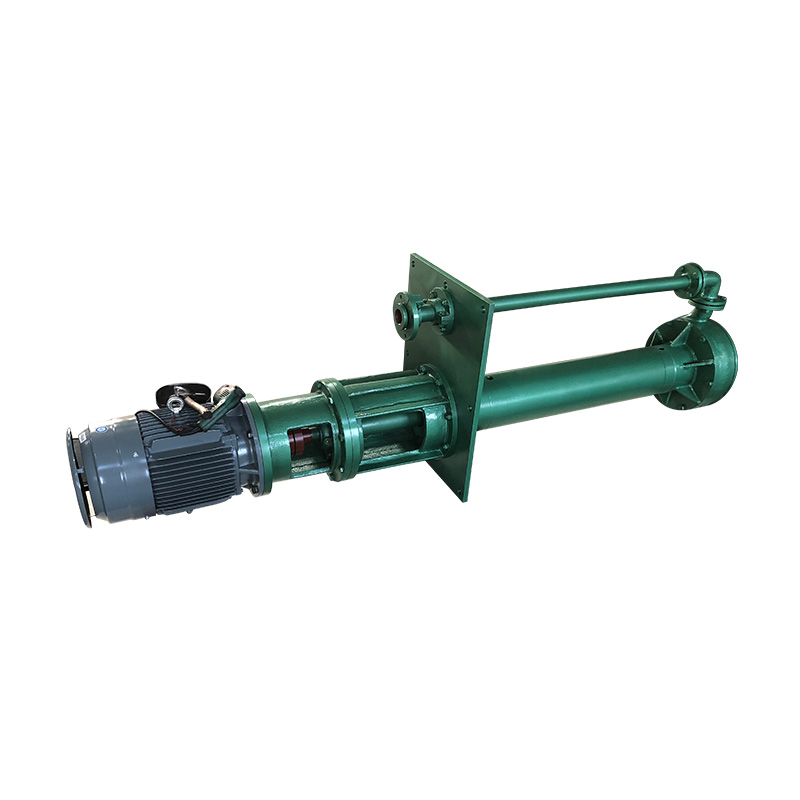

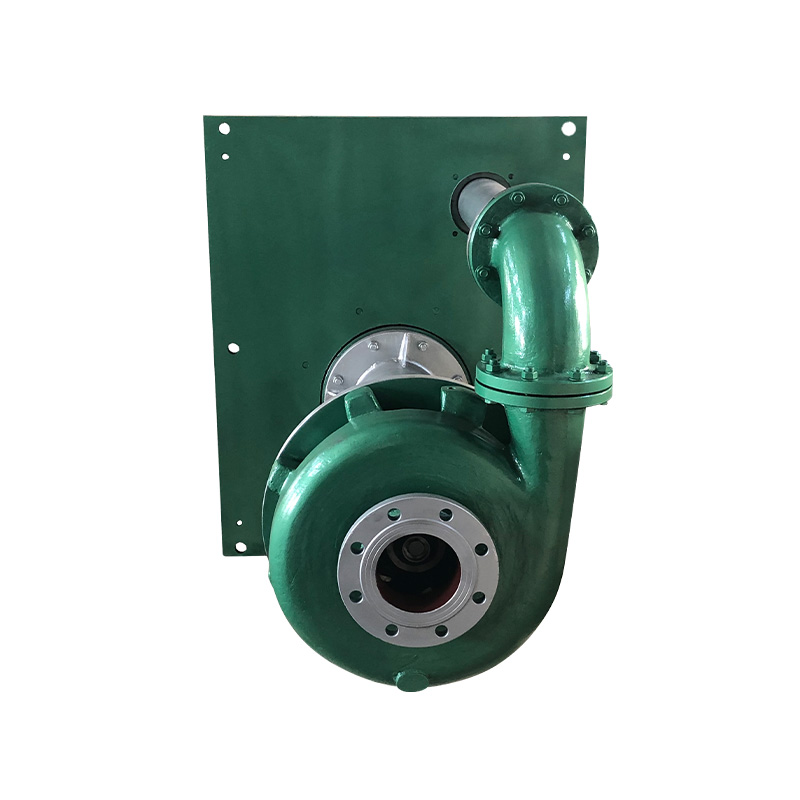

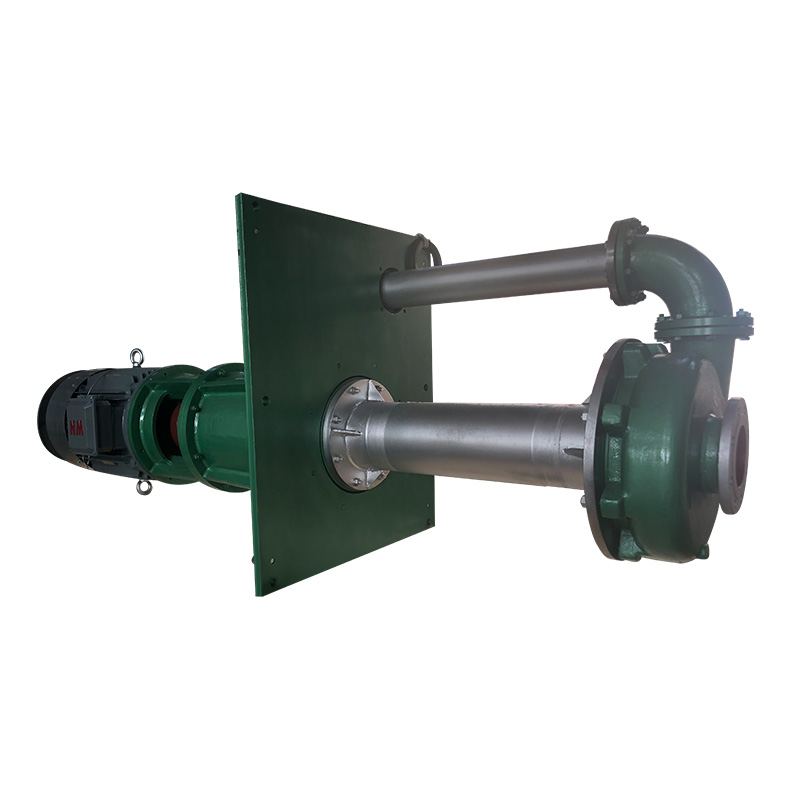

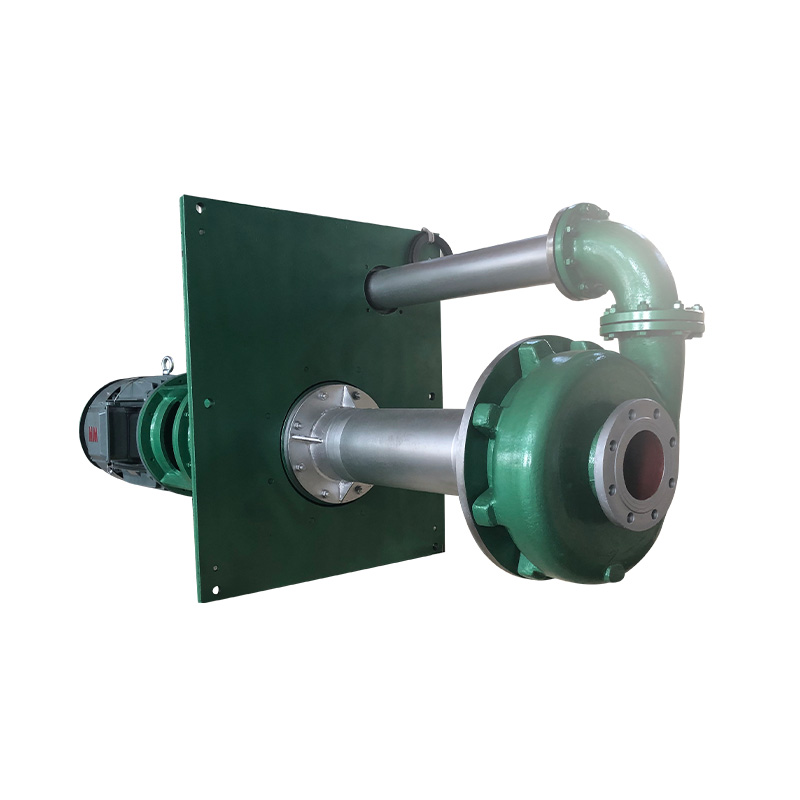

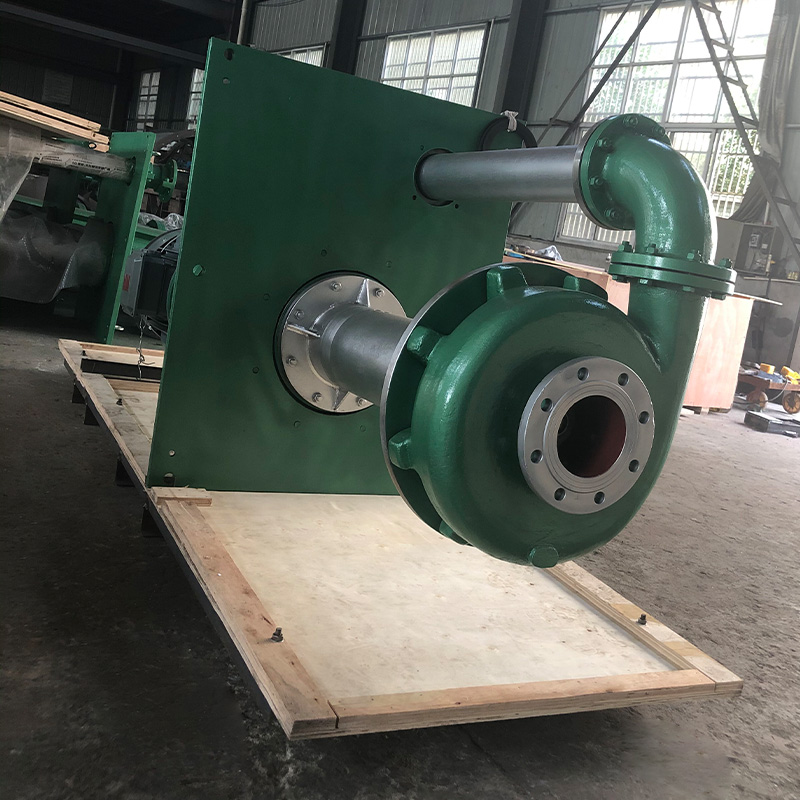

Model LJYA series slurry pump is a vertical cantilever - type single - stage - single- suction centrifugal submerged pump. Its blade wheel is a semi-open type. In the front and back of the blade wheel installs an abrasion-resistant cover. The pump is widely used in chemical processes for conveying medium containing less than 30% solid granules and with a viscosity of less than 200cp, which is subject to the interaction of corrosion and abrasion. It is especially suitable for conveying such medium as phosphoric acid, triammonium phosphorate slurry, etc. In general, the temperature of the conveying medium is less than 1 50C. When conveying medium with higher temperature, the bearing should be cooled with cooling water.
Flow range | 10-400m3/h |
Lift range | 10-50m |
Speed | 2900/1450r/min |
With power | 0.55~400kw |
Applicable fields | conveying acid and alkaline clear liquid or slurry; various corrosive slurries in the smelting industry; various dilute acids in the acid-making industry; Various types of sewage in the environmental protection industry. |
