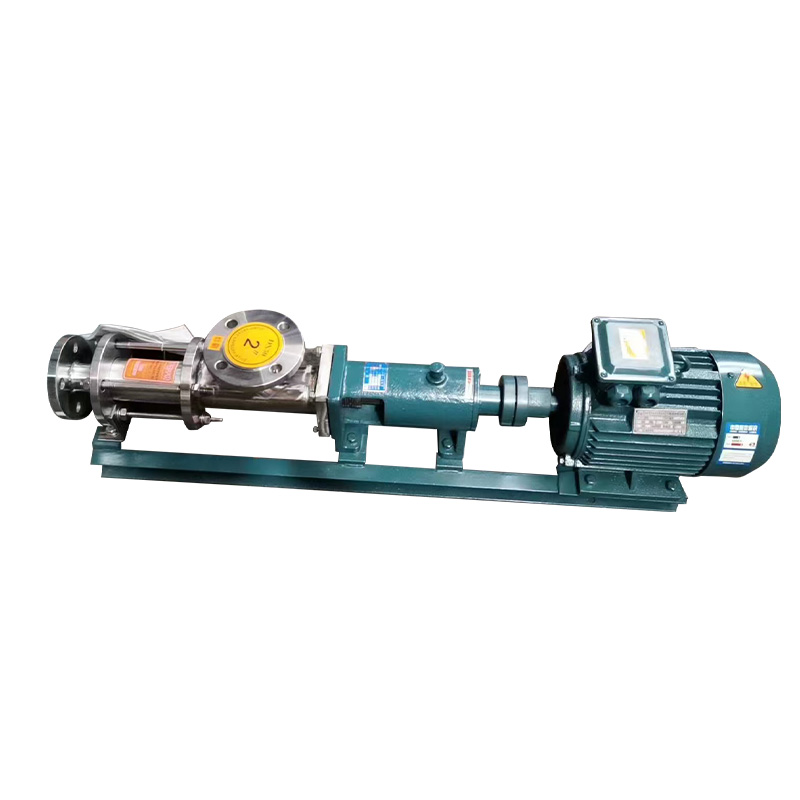

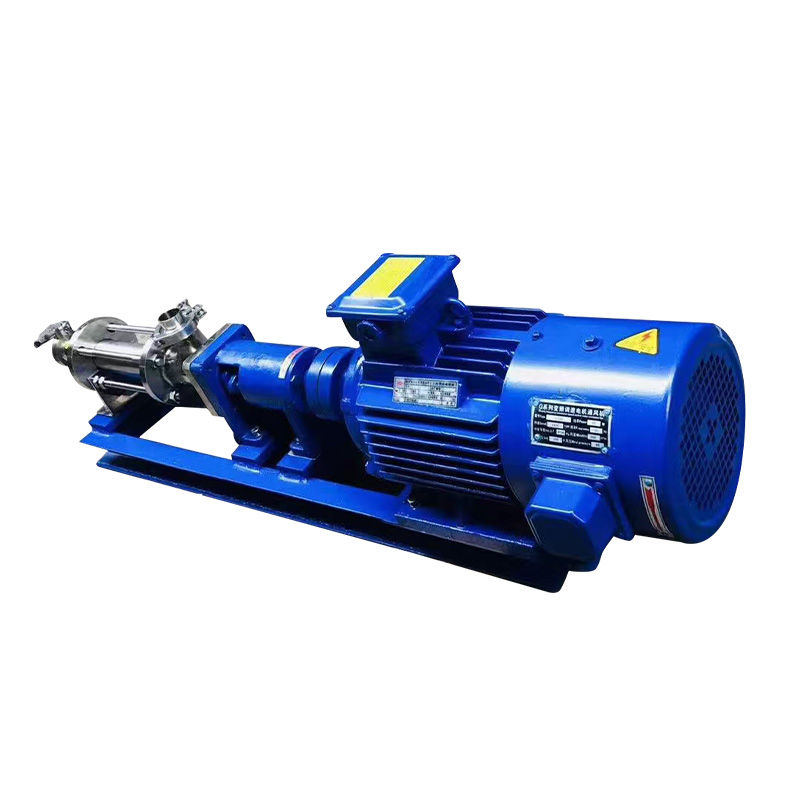

G Type Screw Pump
  • G Type Screw Pump
  • G Type Screw Pump
  • G Type Screw Pump
  • G Type Screw Pump
  • G Type Screw Pump Jiangsu Huanyu Chemical New Materials Co., Ltd.
  • G Type Screw Pump Jiangsu Huanyu Chemical New Materials Co., Ltd.
  • G Type Screw Pump Jiangsu Huanyu Chemical New Materials Co., Ltd.
  • G Type Screw Pump Jiangsu Huanyu Chemical New Materials Co., Ltd.

G Type Screw Pump

For pumping neutral or corrosive liquids, uncontaminated or abrasive liquids, liquids containing gases or which tend to froth, and liquids of high or low viscosity, including liquids containing fibrous and solid material.
Principal fields of application
The food industry, Texil mill, Paper-making, Petro-industry, Chemical industry, Shipbuilding, Build industry, Nuclear industry, Metallurgical, and mine, etc.
Operation
The mono pump is a screw pump sealed on the inside gearing, belonging to the rotor displacement pump. The essential part consists of a combination of a stator with two-start female thread and a rotor in planetary motion by the universal coupling, between the stator and the rotor, being in mesh continually, formed many spaces, As the close spaces unchanged in the volume are axially moving, the medium handled is transmitted to the outlet port from the inlet port. The liquid transmitted is not confused or disruptive, thus it is most suitable for lifting mediums containing solid matter, abrasive particles, and viscous liquids.
CONTACT US
01Specification 02Application 03Inquiry
Flow range 0.3~150m3/h
Lift range 5~125m
Speed 2900/1450r/min
With power  0.55~90kw
Applicable fields petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceuticals and textiles, sewage treatment, mining,
Salt-alkali industry and other industries.
